SSOS - MUCAP

MUCAP Features

The Solid State MultiLevel Capture system, or MUCAP as it is often called, is the industry standard of pipe organ capture/combination systems. First introduced in 1984, it is found in every type of organ console all over the world. As always, when we design a system we expect it to have a very long life and also to be able to add to the basic system over time as new technology becomes available.

History

When MUCAP was created, 8 memory levels was a huge step. Now the same system can be upgraded to almost unlimited storage and use modern convenience technologies such as iPad control screens. Today we offer the MUCAP and the CFM, which can be integrated into the relay system for less space and easier wiring. If you already have a MUCAP, this page shows the new options that are available to you to extend your investment without paying someone to rewire the console. If you are considering a new console, then maybe the CFM may be a better fit.

Features

Memory System

When the MUCAP was first designed 8 memory levels was as much as anyone wanted, now we can do virtually unlimited amounts. Batteries are gone with the use of modern flash memory and your original investment from the 1980's can be upgraded with all the latest features and as much memory as you need. With the addition of Organist Palette we can add Libraries to carve up the vast memory into manageable Libraries which can be secured with PIN numbers.

Control Panels

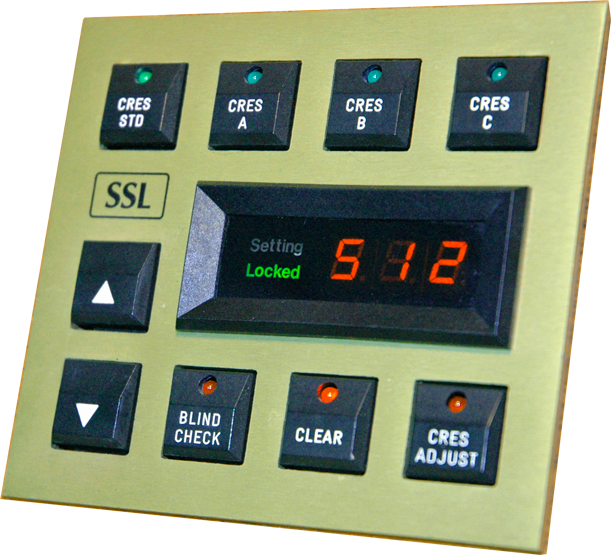

MUCAP has as many choices as there are organ configurations, from a simple rotary switch, through industry standard control panels with up to 999 levels to a Library based system with wireless control from an iPad. The original brass panel that became a standard in the 1990’s is still available, as is the new modular control panel that allows you to fit controls within the coupler rail or in a drawer if you prefer. We can upgrade any MUCAP system sold over the past 35 years, just ask and we will be happy to dig out the records and give your builder a quotation.

Organist Palette

The Organist Palette provides a large clear display all in one view without scrolling. When you are done, simply put it to one side or back in the drawer. All wireless, using an iPad. The main screen shows all the apps you have installed. The sequencer works with the MUCAP, and other features such as a transposer work with the MultiSystem relay.

Piston Sequencer

Over its long life the MUCAP has supported many sequencers but since its creation in 1991 the natural order piston sequencer has always been available. Today the MUCAP system offers the same features as the CFM system so an organist can switch from one organ to another without confusion: The natural order piston sequencer which runs through the generals moving to a new level when needed or, with the Organist Palette, the options to insert steps you missed, name sequences for quick selection and a special set of memories to keep a few you might need to insert again and again.

Settable Features

Pistons are pre programmed as General, Divisional, Reverser or Blind. A blind piston can be a Tutti or a Ventil. Crescendo pedals are an option and require a control panel. All systems support 4 crescendo settings. Some reversers can be made assignable for special functions.

Total Recall

Originally a floppy disk system now upgraded to USB. Total Recall backs up and restores the entire piston memory or in Live mode adds additional removable memory levels.
